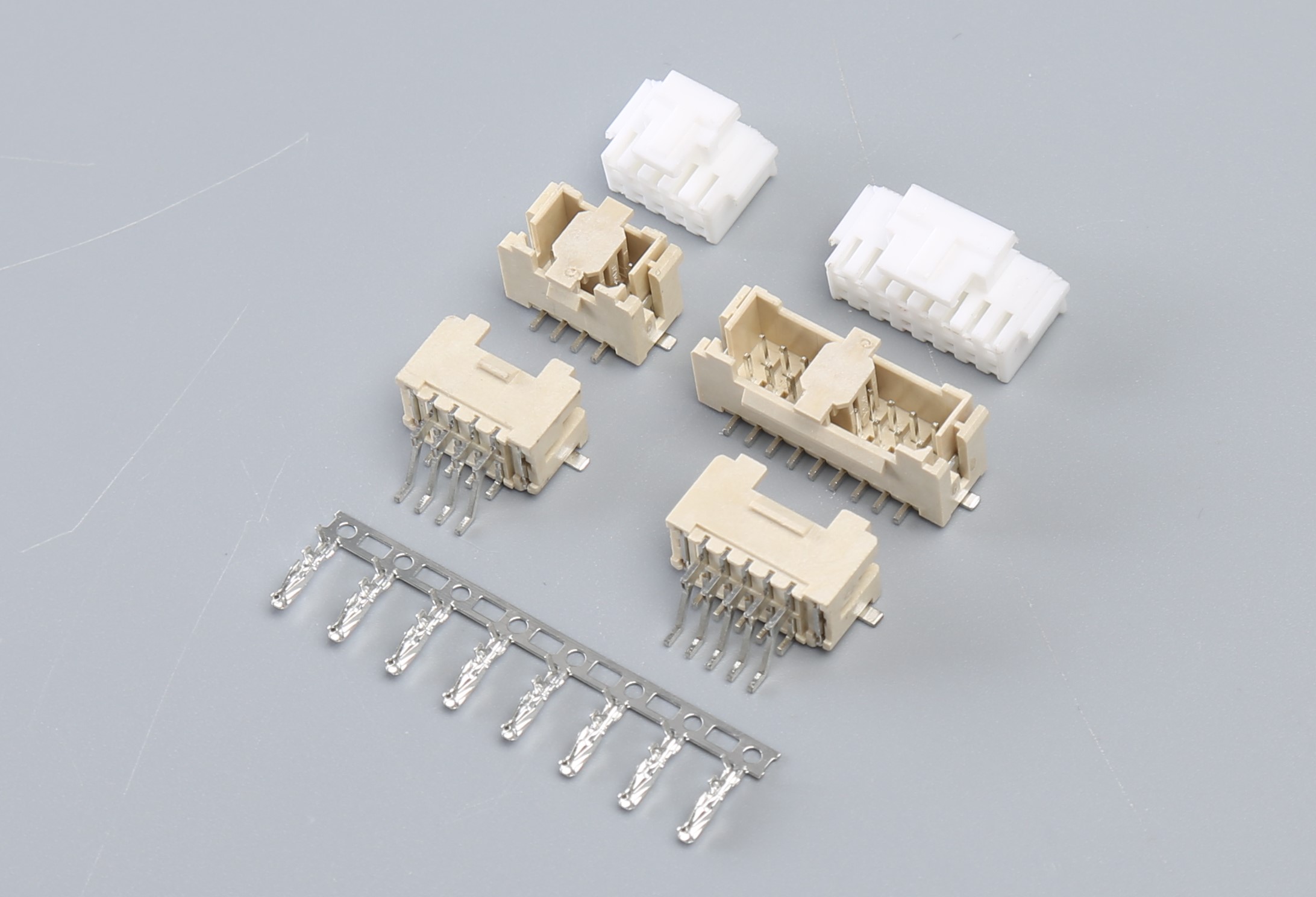

20005-PHB

Electrical properties

1、Current rating: 2A ACDC

2Voltage rating: 250V ACDC

3、Temperature range: -25 to 85

4Contact Contact resistance:Initial value/20mΩ max

5、Insulation resistance:1000MΩ min

6、Withstanding voltage:800V AC/ minute

7、Applicable wire:AWG #22 to #28
